MIG Welder
New arc welding machines that were developed for high productivity, high quality and cost saving which achieves not only the weld-ability with multi welding processes for the price of one unit, but also the ease of welding for various metals and nonferrous metals (for CO2/MAG welding, MIG welding, covered DC electrode arc welding, and arc air gouging)
Contact Us
Built-In Trouble Shooting Function
- Over-current protection
- Over-heat protection
- Three phase connection error protection
- Signal malfunction prevention
- Micro Processor error protection
Excellent Welding Characteristics
- Vertical position welding characteristics for feeling that welding objects adhere to the base metal
- High quality welding by application of excellent Micro Processor algorithms
- Consistent welding voltage and current
- Beginners can do high quality welding with the new concept algorithm
Welding Functions and Performance Continually Improved
- Improvement of inferiority of solid wire welding ability, deep-rooted problems of existing welding machines, and start characteristics
- Exclusive wire mode for solids is built-in
- Improved characteristics of welding arc start and minimized welding spatter by applying high efficiency Micro Processor & New Concept Algorithm
Built-In Power Saving and Error Indication
- Temperature error - Lamp is lit
- Over-current - Lamp flicks
- Power source disconnection - Lamp flicks for 0.25 sec
- Electrical power reduction function reduces power consumption by about 250W
- PCB error pilot lamp
- Welding machine error pilot lamp
Print Page
MICRO PROCESSOR CONTROLLED ARC-350, 500, 600, 700 were developed by dozens of researchers and several thousands of site welders having special technology that other welding machine makers cannot imitate.
Typical Applications:
- Shipbuilding Yards
- Steel Structure Manufacture
- Plants
- Construction Sites
- Power Plants
- Automobile Factories

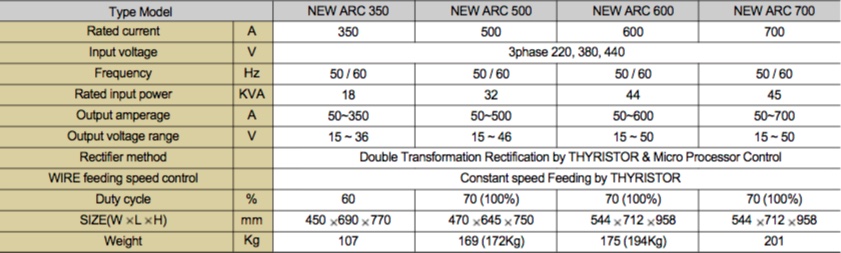

Specifications
Other features:
- Various welding capabilities, CO2/MAG WELDING / DC COVERED ELECTRODE ARC WELDING / MIG WELDING / GOUGING
- Innovative curtailment of expenditure
- Minimizing investment for equipment
- Minimizing gas and electric power cost
- Minimizing repairing and maintenance cost
- All kinds of steel / Stainless steel / Aluminum / Copper
- Maintenance cost saving as well as curtailment of investment effect
- Creating maximum effect by minimum investment
- 4 units are compacted into one

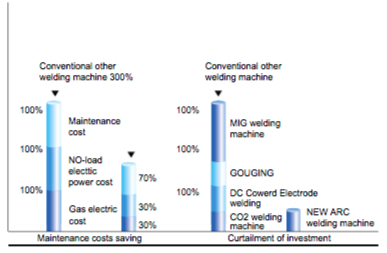

Comparison diagram of economical efficiency
